BSP , Bolt Solid Plate Fastening System
Strong & Effective Splice

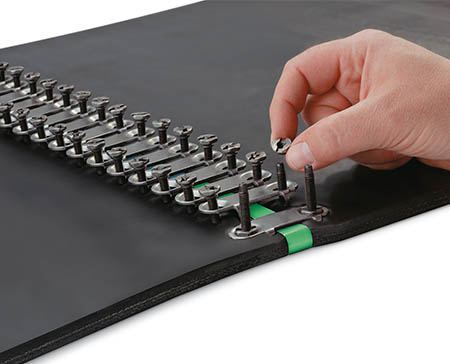

The Flexco® Bolt Solid Plate Fastening System produces a strong, sift-free splice with superior holding ability thanks to a combination of top-and-bottom plate compression and high-tensile-strength bolts.
features and benefits
specifications
tools
gallery
Literature Downloads
FEATURES & BENEFITS
- Mechanical fastener rating from 315 to 1000 N/mm
- Belts from 5 mm to 24 mm thick
- Pulley diameters from 300 mm to 1220 mm
- Sift-free splice perfect for sand, gravel, crushed stone, and cement
- Specially formed teeth penetrate belt carcass without damaging fibers
- Piloted bolts for quick and easy installation
- Available with rubber-covered top plates for increased impact protection and compatibility with conveyor components
The Industry Standard for
Strong, Long-Lasting Splices
Flexco® Bolt Solid Plate fasteners are engineered to meet the demands of the toughest material handling applications, providing a strong, sift-free splice with superior holding ability.

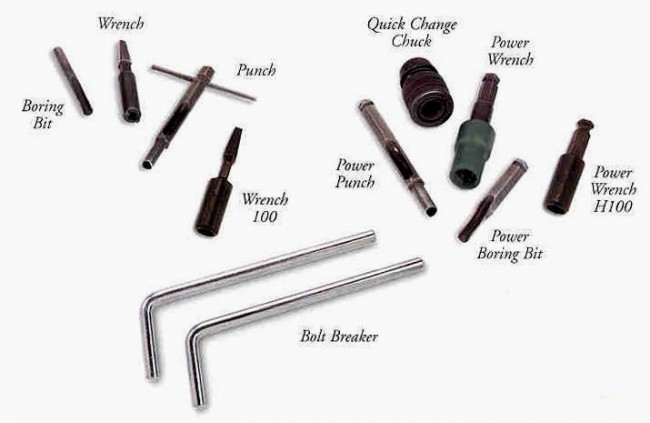

TOOLS
The only tools needed for Bolt Solid Plate fastener installation are a template and portable hand tools
Impact wrench driven power tools are recommended and can reduce installation time by at least 50%
PRODUCT SPECIFICATIONS
PART NUMBER
FASTENER SIZE
BELT THICKNESS mm
MIN. PULLEY DIA mm
BELT TENSION N/mm
AVAILABLE IN OTHER MATERIALS
QUANTITY PER BOX
12X123456789
1E
5 to 11
300
315
N/A
25
14X364503001
140E
5 to 11
360
400
YES
25
14X364504008
190E
8 to 14
460
630
YES
25
14X364503976
1 1/2E
11 to 17
460
500
YES
25
14X364503976
2E
14 to 21
760
800
YES
25
14X364503976
2 1/4E
14 to 30
920
800
YES
25
14X364503976
2 1/2E
19 to 25
1070
1000
N/A
25
14X364503976
3E
24 & over
1220
1000
N/A
25
