Impact Bed heavy-duty

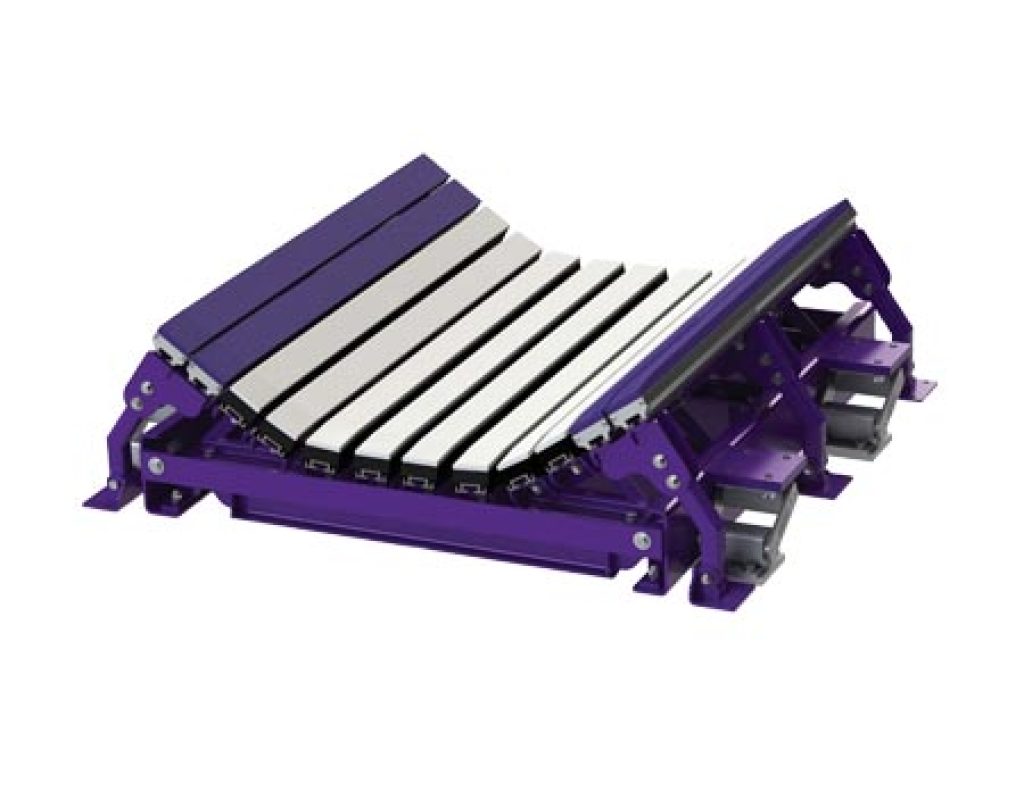

DRX™ 3000 Dynamic Beds
Our DRX™ 3000 Dynamic Beds are designed with one simple goal: protect the belt. How we meet that goal is revolutionary. the impact bed is engineered with a superior belt protection into the entire structure – not just the bars. Sturdy components, robust construction and convenient maintenance make the line more durable and efficient. DRX 3000 takes this theory to the extreme with Impact Energy Absorbers that react to the most severe loads.
features and benefits
specifications
APPLICATIONS
gallery
Literature Downloads
FEATURES & BENEFITS
- Entire system engineered for superior belt protection
- Exclusive Velocity Reduction Technology™, including Impact Bar Supports and Isolation Mounts, provide two levels of impact-absorbing force reduction
- Easy maintenance
- Troughing angles: 20-degree and 35-degree (other angles available by special quote)
- In 1200 mm and 1500 mm bed lengths
level of protection unlike any other
The Velocity Reduction Technology™, including Impact Bar Supports and the Impact Energy Absorbers, ensure a level of protection unlike any other. Less belt wear and damage, less rebounding and material degradation, and two levels of impact absorbing force reduction.
Perfect for the most rugged, heavy-duty drop zones at any facility, the DRX 3000 can meet your specific need.
PRODUCT SPECIFICATIONS
Maximum Belt Speed: 5M/sec
Max Temperature Rating: -40°C to 82°C
Impact Bar Material: UHMW Polyethylene, rubber cushion and aluminum extrusion
Available for Belt Widths: 1050 to 2400mm
Impact Energy: Max Lump Weight (kg) x Drop Height (m)
200 to 400 kg-m
Tonnage Rating: See table below
Belt Width (mm)
Tonnage Rating (short tons/hr)
1050
28700
1200
31900
1350
38300
1500
41500
1800
44700
2100
51100
2400
63900

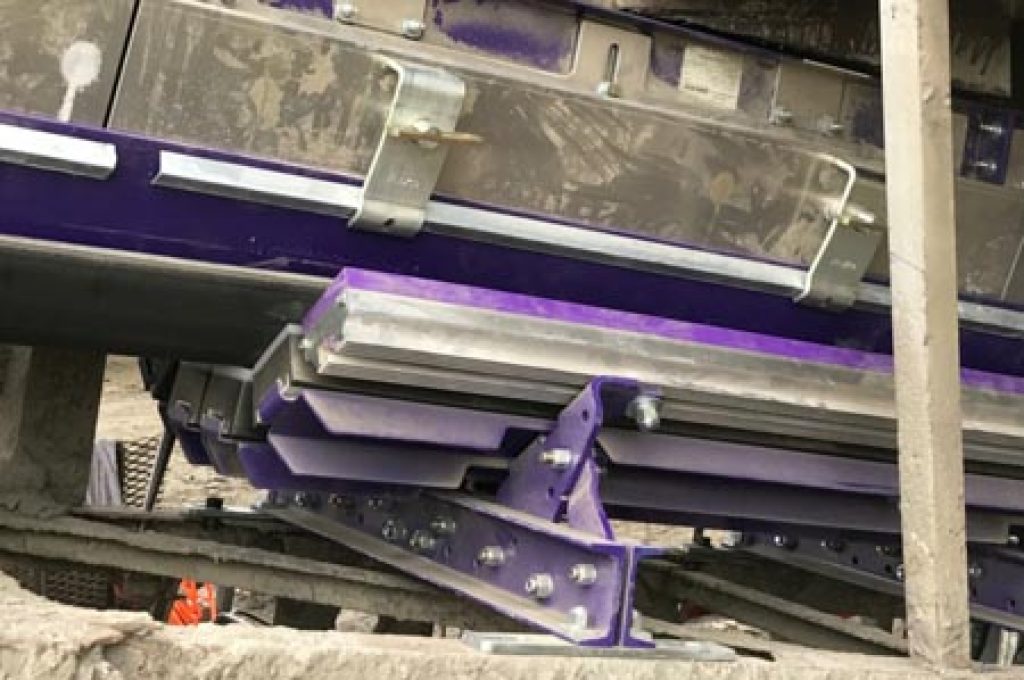

GALLERY
