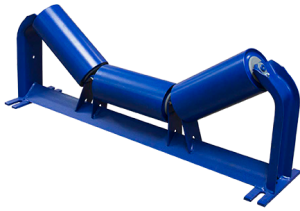

Conveyor Idlers – Steel
Effective and affordable
TECHNO CAST offers a wide selection of conveyor belt Idlers to meet your conveying needs…
features and benefits
specifications
part numbers
gallery
Literature Downloads
FEATURES & BENEFITS
- Available in 89 mm, 102 mm, and 127 mm diameters
- Standard bearings
- Dipped shell resists corrosion
- Frames equipped with lock-down tab

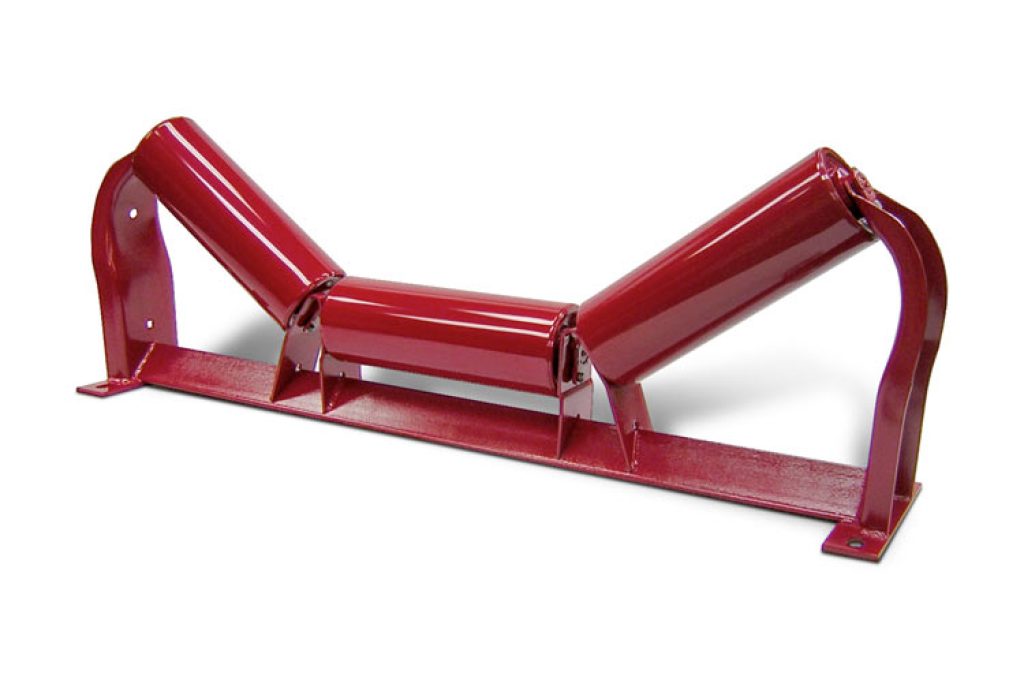

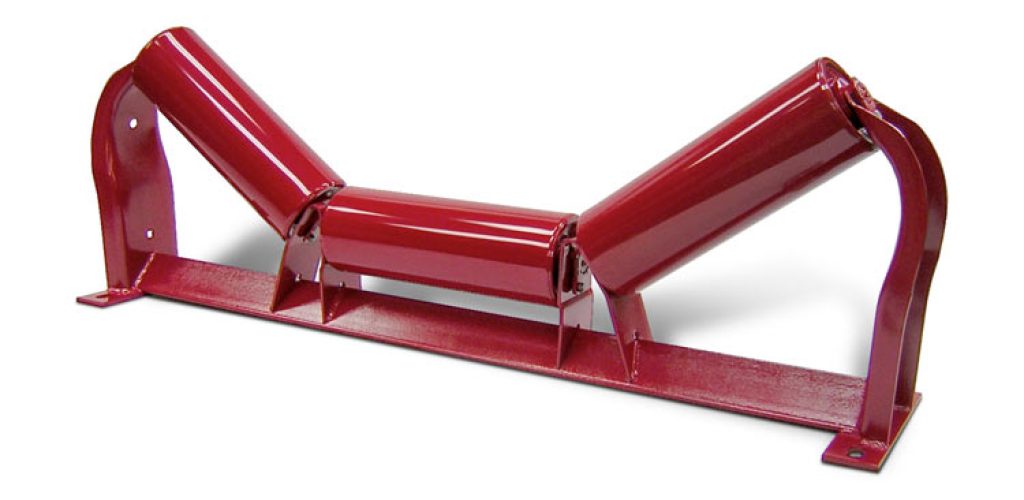

STANDARD STEEL IDLERS
Heavy Duty Construction – designed for mining applications.

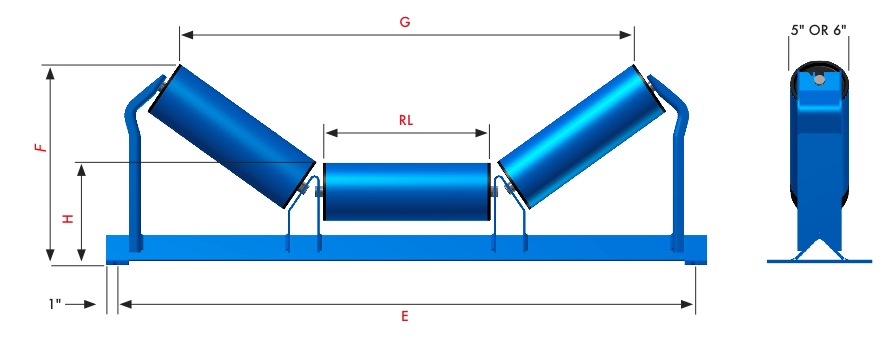

PRODUCT SPECIFICATIONS
BELT WIDTH mm
ROLLER DIAMETER mm
ROLLER LENGTH RL mm
HEIGHT H mm
OVERALL HEIGHT F mm
OVERALL WIDTH E mm
WEIGHT KG
500
102
1,8
25
YES
686
14
650
102
1,8
25
YES
686
YES
800
102
1,8
25
YES
Polyurethane
YES
1000
102
1,8
25
YES
Polyurethane
YES
1200
102
1,8
25
YES
Polyurethane
YES
1400
102
1,8
25
YES
Polyurethane
YES
